0.7m³ mild steel hopper with steep sides for uninterrupted material flow onto the belt
Hydraulically driven 650mm twin spreading discs with adjustable stainless steel vanes
Spreading width from 2 metres up to 15 metres dependant on hydraulic oil flow
Hydraulic motor overrun valves eliminate hydraulic spikes to the system

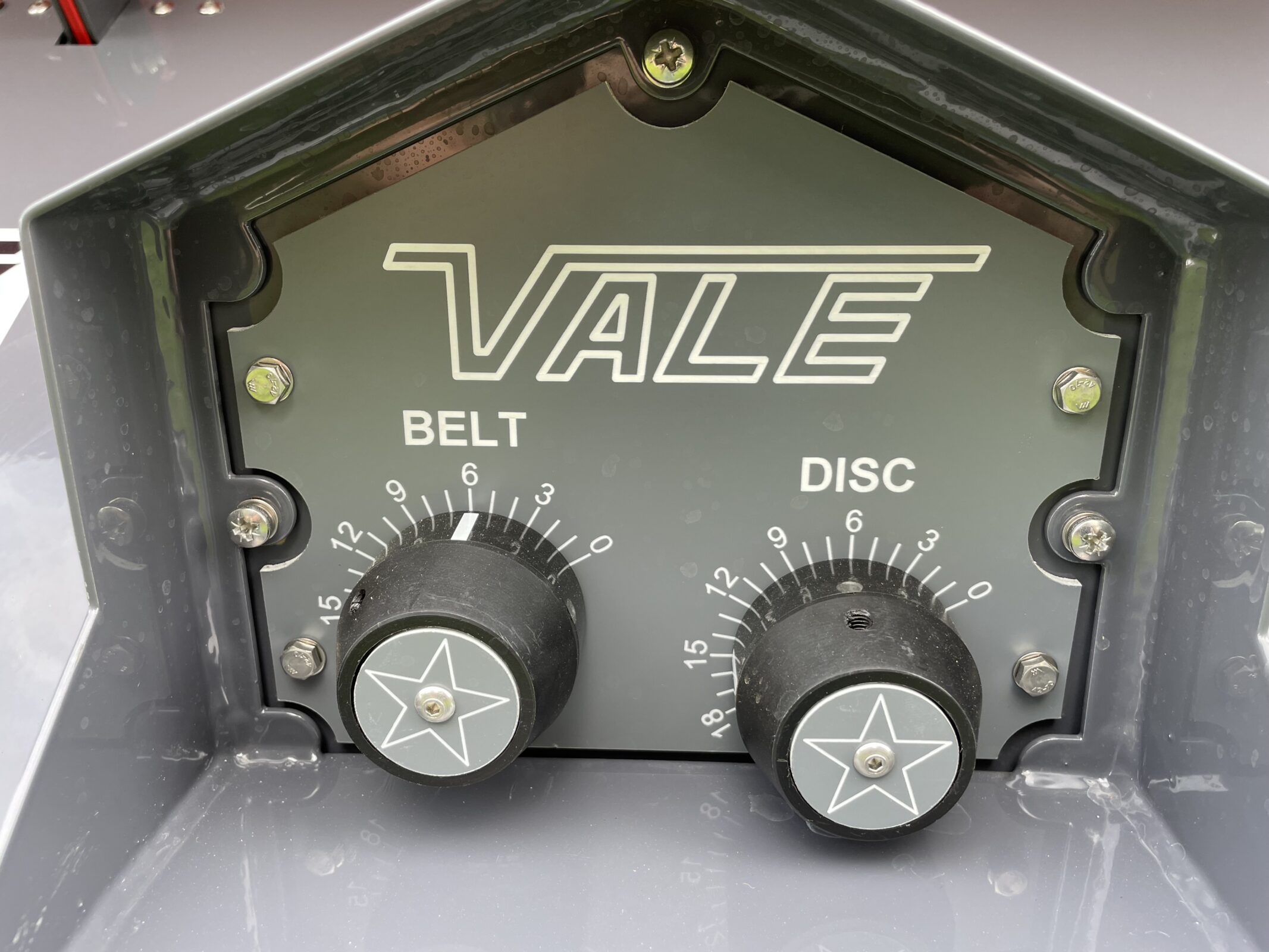

Adjustable 18 detent control of the spreading width and conveyor belt speed
Adjustable disc position to fine tune spreading pattern by changing the drop point
Multi position rear variable discharge door
400mm PVC belt with central under tracking to maintain belt position on drive rollers
Horizontal cleated belt for positive material distribution on to discs
Hydraulic tailgate eliminates material loss
Under floor belt cleaning brush
Neoprene covered drive and idle rollers give superior grip and reduce belt wear
Hydraulically powered from utility vehicle auxiliary hydraulic valves
Electric ON/OFF switchbox control
Mounting chassis for John Deere / Toro / Jacobsen
Demount legs
